Tank Liner Clay for Stock Tanks & Ponds in Parker County

For heavy construction, our clay forms an impermeable barrier that withstands the most demanding industrial applications. Secure your site with a permanent foundation designed to last.

HIGH QUALITY TANK LINER CLAY

PROVEN APPLICATIONS

Engineered for Critical Containment

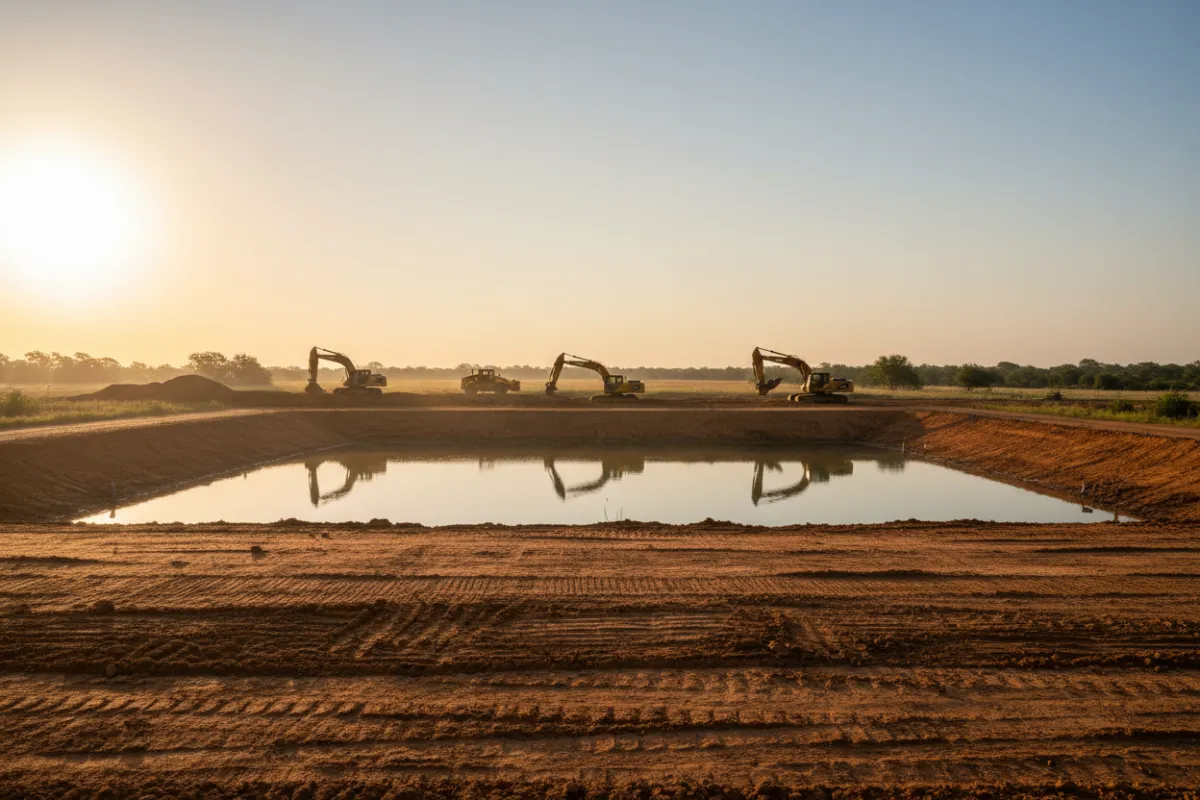

Farm & Agricultural Ponds

Prevents water seepage and preserves vital agricultural resources with a permanent, natural seal.

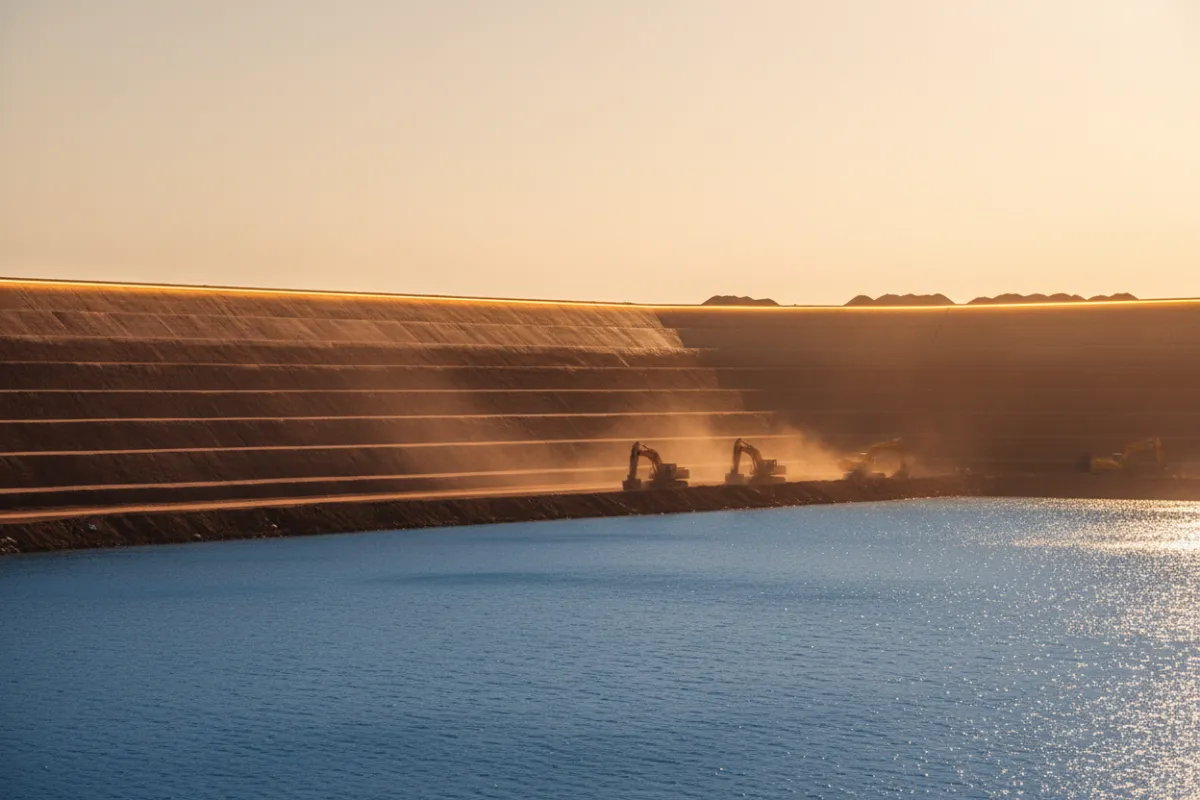

Industrial Lagoons

Safely contains chemical and industrial byproducts, ensuring complete compliance and preventing groundwater contamination.

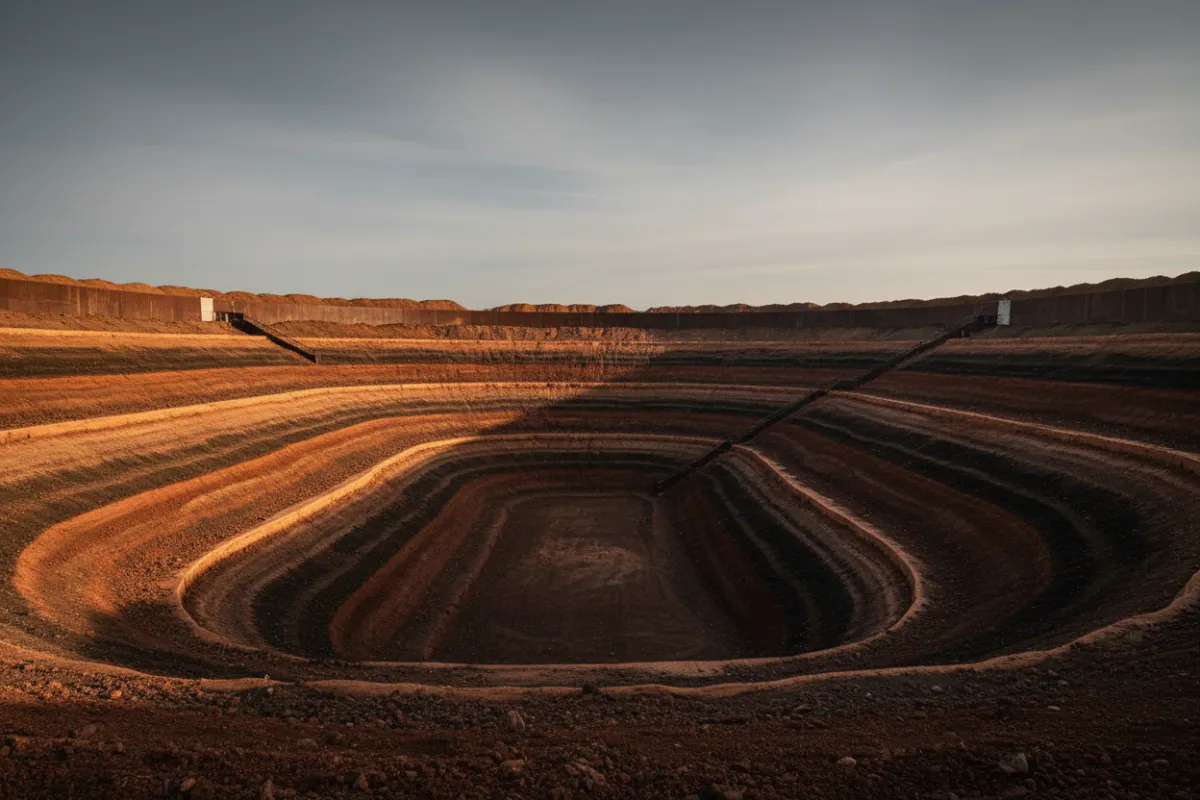

Hazardous Waste Liners

Delivers uncompromised structural integrity and extreme impermeability for critical environmental protection.

ESTIMATION GUIDE

Calculate Your Tonnage

Accurate estimation prevents material shortages and excess waste. Follow these three steps to determine exactly how much clay you need for your containment project.

01

Surface Area

Calculate the total square footage of the tank base or pond floor to establish the footprint.

02

Desired Depth

Most industrial applications require a minimum of 6 to 12 inches of compacted clay for full impermeability.

03

Tonnage Yield

Multiply the cubic yardage by our standard conversion rate of 1.5 tons per cubic yard to find your total.

Need Help Calculating?

INDUSTRIAL SPECIFICATION

1.5 Tons / Cu Yd

Base Density: 120 lbs/cf
Compaction: 95% Standard Proctor
Permeability: < 1 x 10⁻⁷ cm/sec
Moisture Content: 15-20% Optimal

MATERIAL COMPARISON

Why Standard Fill Dirt Fails

For critical containment, generic dirt isn't enough. Our engineered clay eliminates guesswork, providing an impermeable, permanent barrier that outperforms standard alternatives on every critical metric.

Specification	Standard Fill Dirt	Underwood Liner Clay
Permeability	High / Variable	Impermeable
Plasticity Index	Unpredictable	Optimal (High)
Compaction Density	Inconsistent Voids	Maximum Density
Longevity	Prone to Washouts	Permanent Barrier

OPERATIONS & LOGISTICS

Local Supply, Regional Reach

Map of Aledo TX and surrounding delivery coverage areas

Aledo Hub & Logistics

Operating from our headquarters at 931 Underwood Rd in Aledo, TX, we maintain a massive ready-to-load stockpile of premium tank liner clay. Our strategic central location guarantees rapid dispatch and immediate fulfillment for large-scale infrastructure projects.

Primary Service Range

Dallas-Fort Worth Metroplex
Weatherford & Parker County
Granbury & Hood County

Our heavy-haul delivery fleet is equipped to transport substantial tonnage, ensuring your containment materials arrive precisely on schedule, no matter the site logistics.

TECHNICAL SPECIFICATIONS

Engineering & Specs

What is the permeability coefficient of the Tank Liner Clay?

When properly compacted, our Tank Liner Clay typically achieves a permeability coefficient of 1x10^-7 cm/sec or lower, providing a permanent, watertight barrier suitable for high-demand containment.

What are the Atterberg limits of this material?

The clay exhibits a high Plasticity Index (PI), ensuring excellent cohesiveness and structural stability. Exact Atterberg limit data ranges are available on our official Material Safety and Data Sheets (MSDS).

What are the compaction moisture requirements?

For optimal density and maximum impermeability, compaction moisture content should typically be maintained at 2-4% above optimum moisture content (OMC) during installation.

Do you provide third-party testing certifications?

Yes. Standard Proctor tests, permeability certifications, and comprehensive geotechnical analysis reports are available upon request for engineering review.

How does the clay perform under variable hydrostatic pressure?

Our clay is specifically engineered for critical containment. It resists piping and maintains its impermeable seal even under significant and fluctuating hydrostatic loads, making it ideal for large-scale reservoirs and industrial ponds.

Priority Dispatch

Secure Your Supply

Our fleet schedules are booked weeks in advance for high-volume commercial projects. Request an official quote today to lock in your timeline and ensure your permanent containment material is on-site exactly when you need it.
